HIGH PRECISION
16-bit ADC (ADS1115) providing 0.001 grain display resolution.
HARDWARE_PRODUCT // V1.0
POWDERSENSE
Precision powder measurement device for progressive presses. Stop guessing your charge. Measure with 0.001 grain precision.
Home-grown project. No longer for sale, but a good picture of what we can do in hardware.

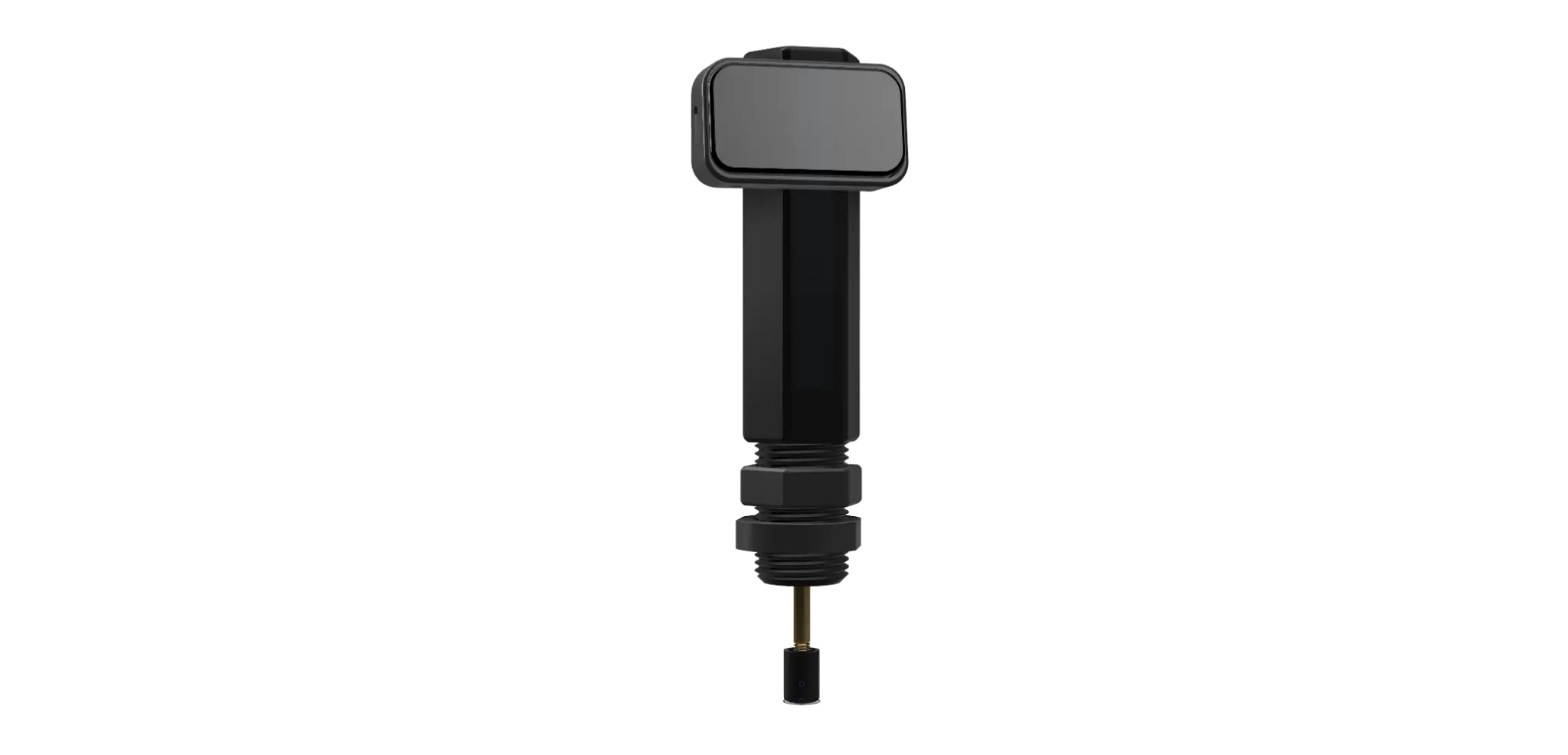

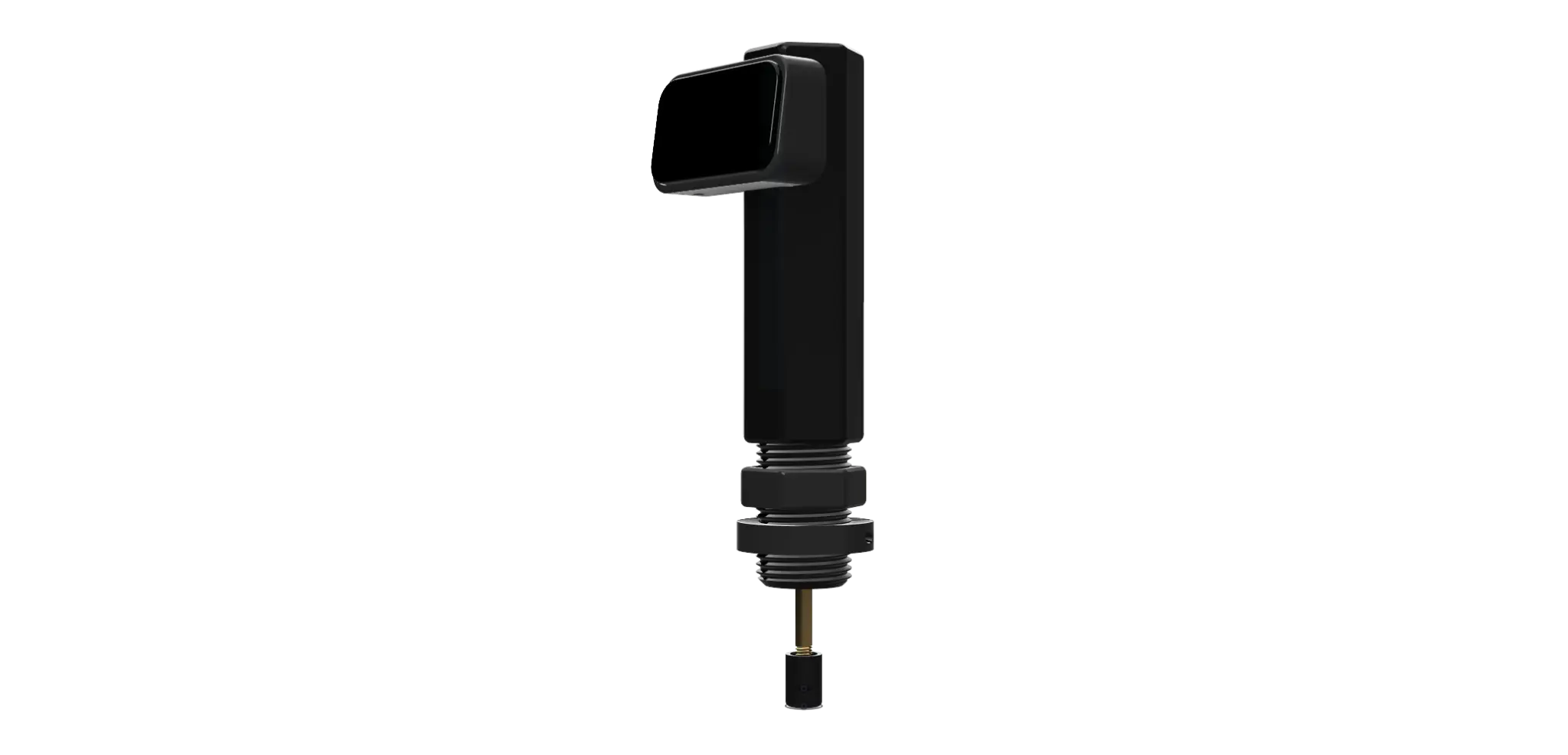

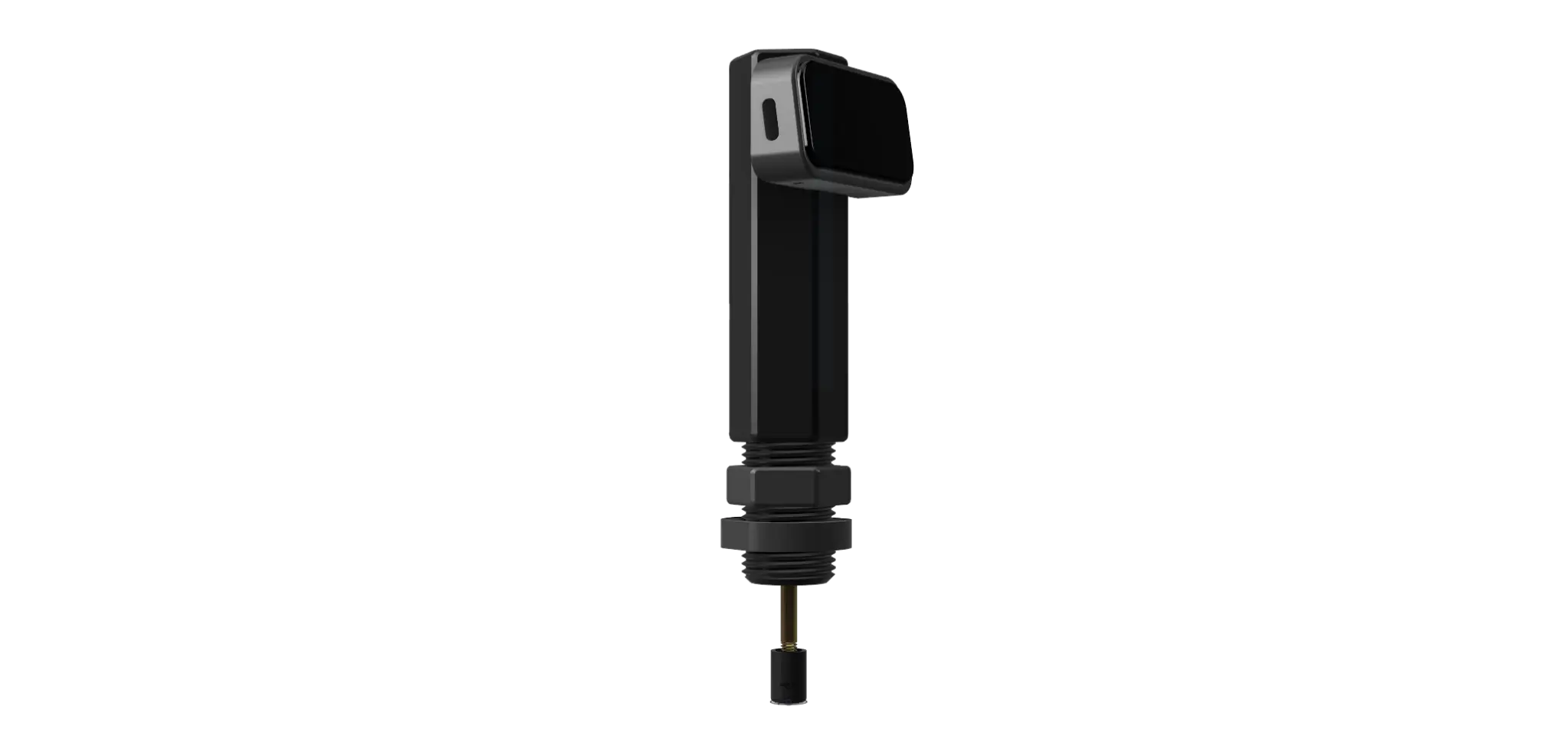

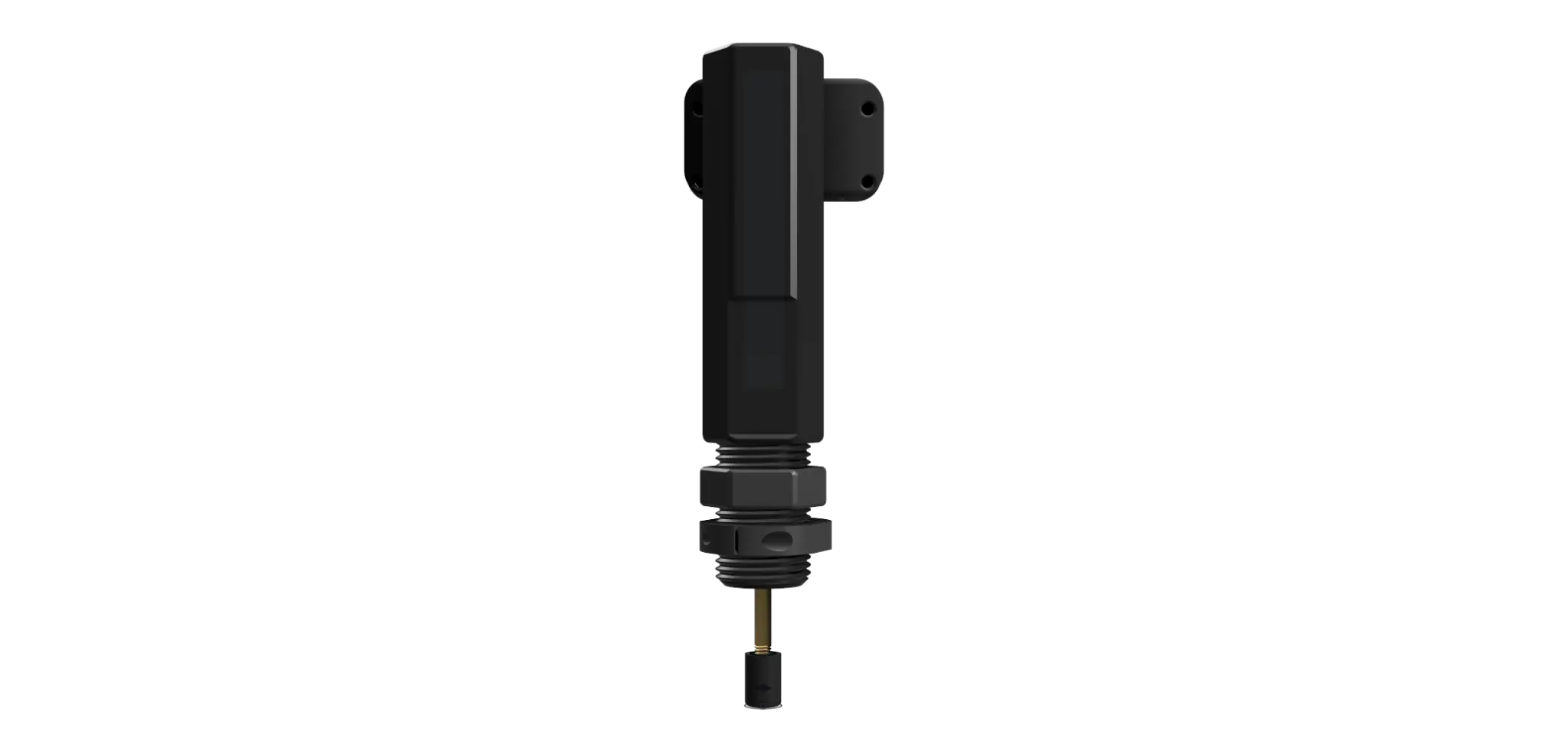

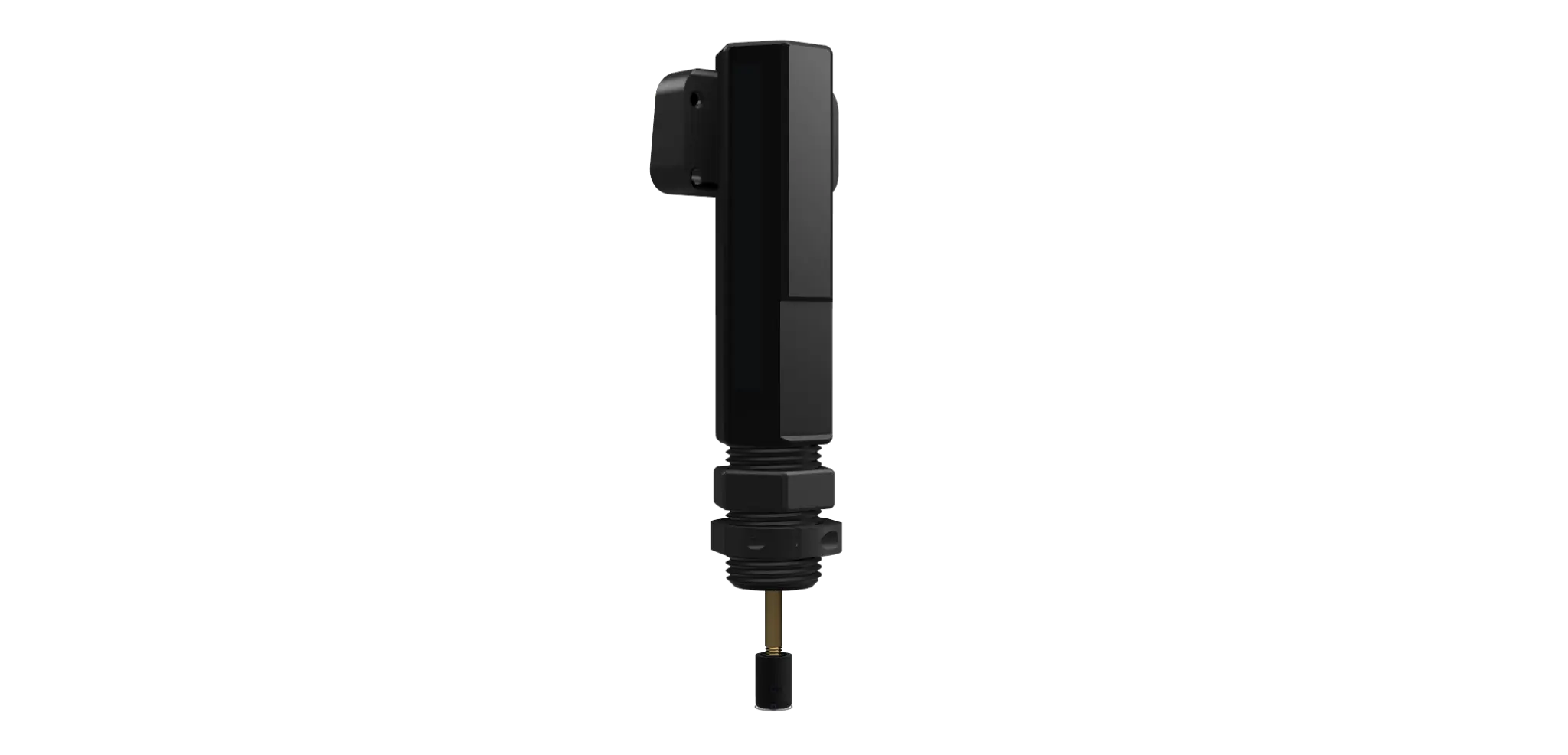

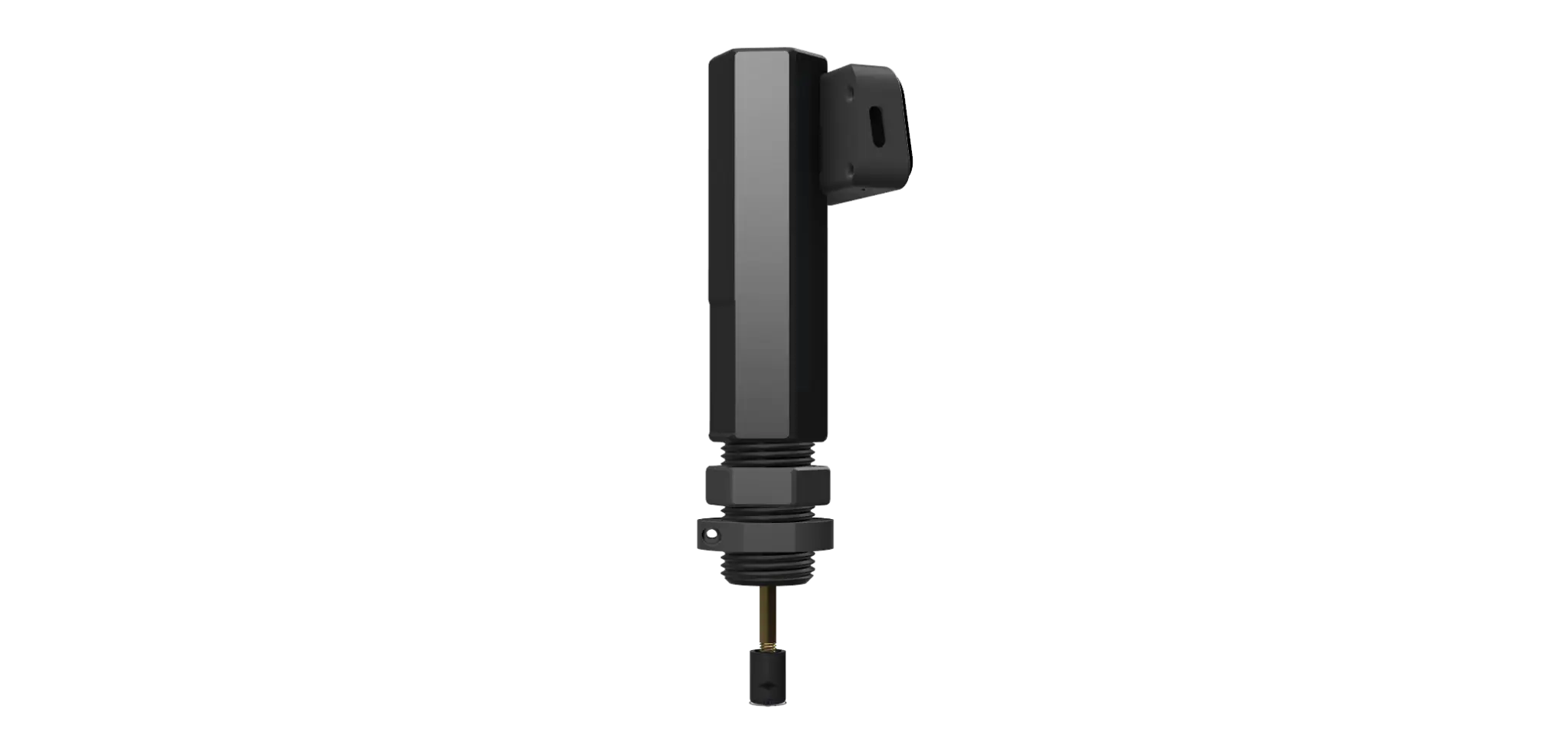

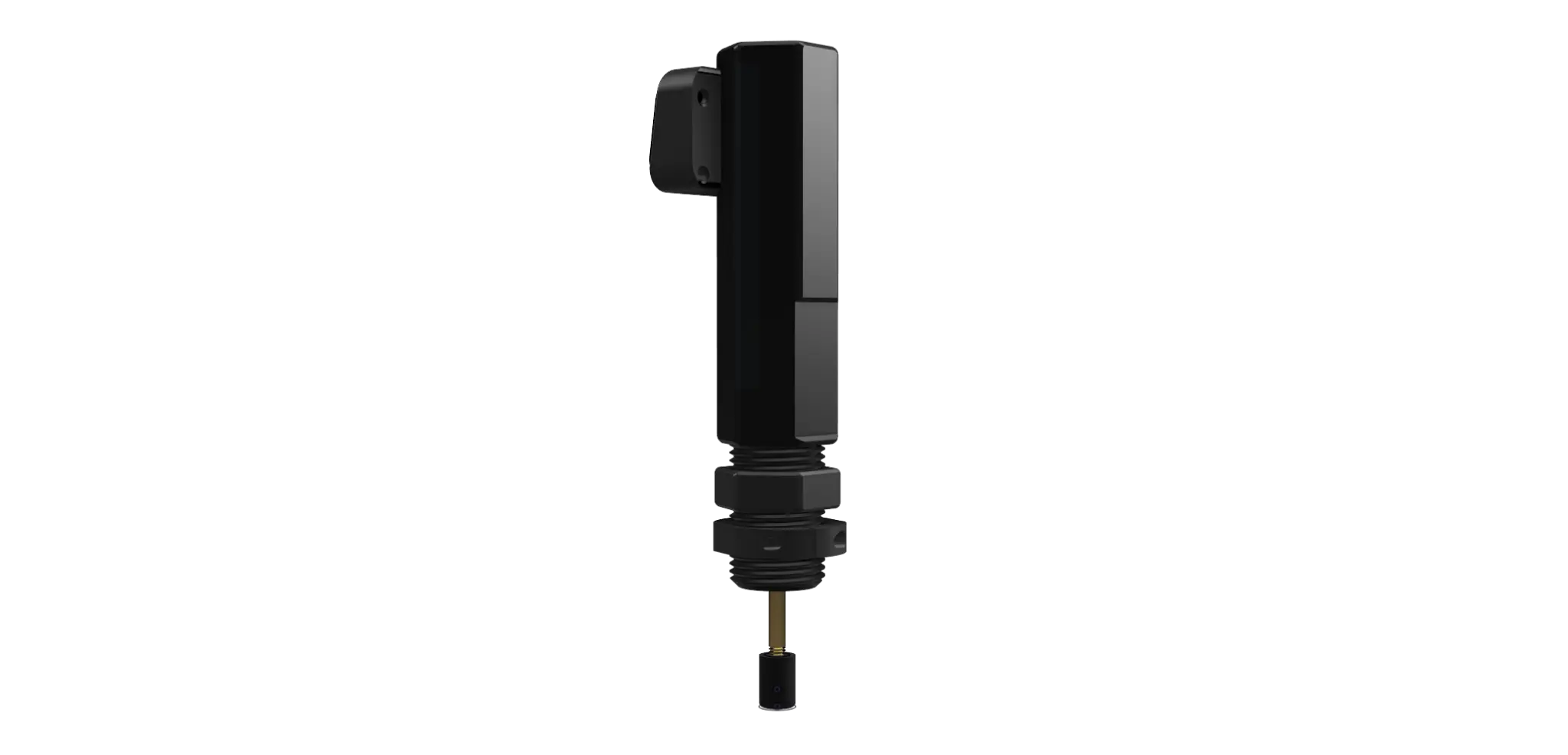

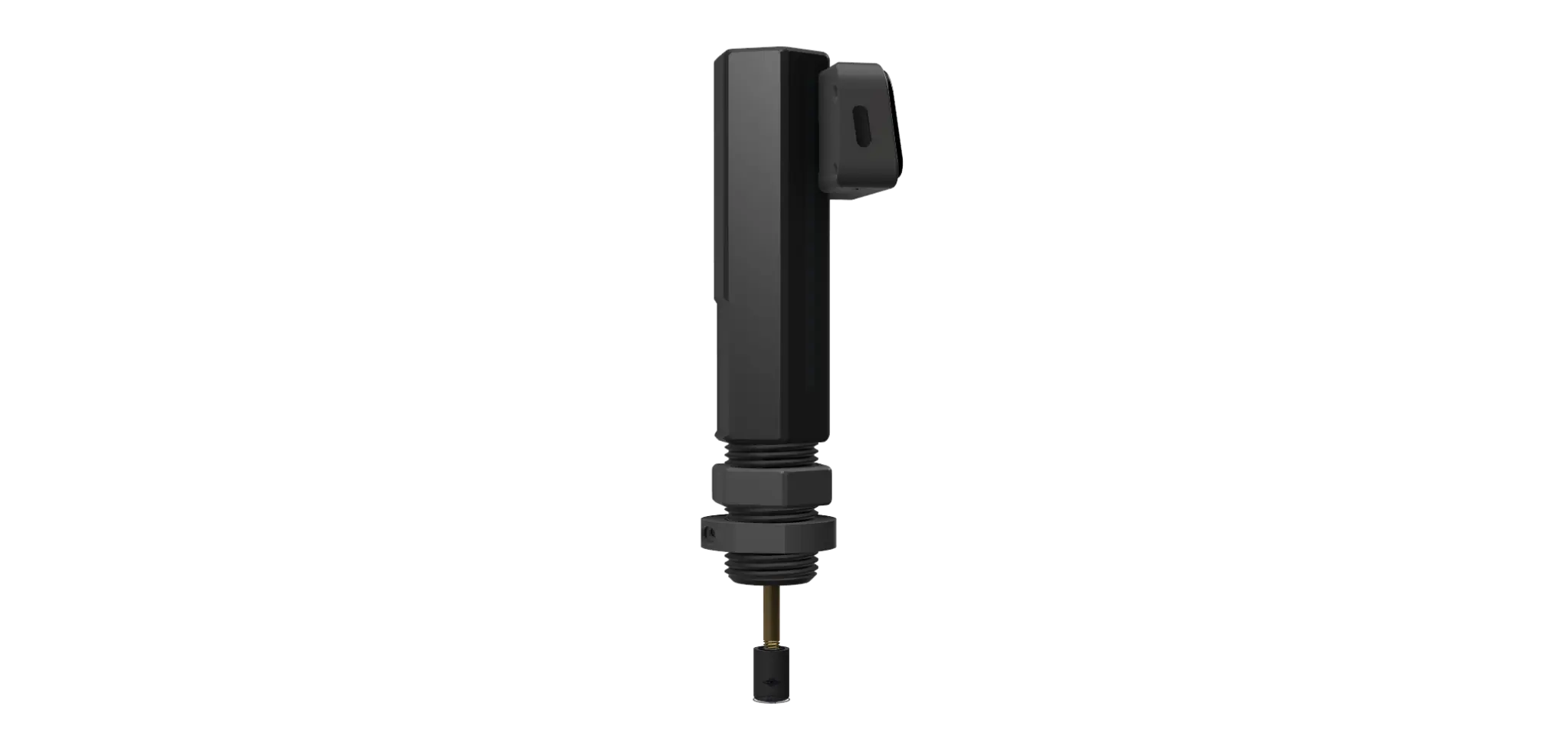

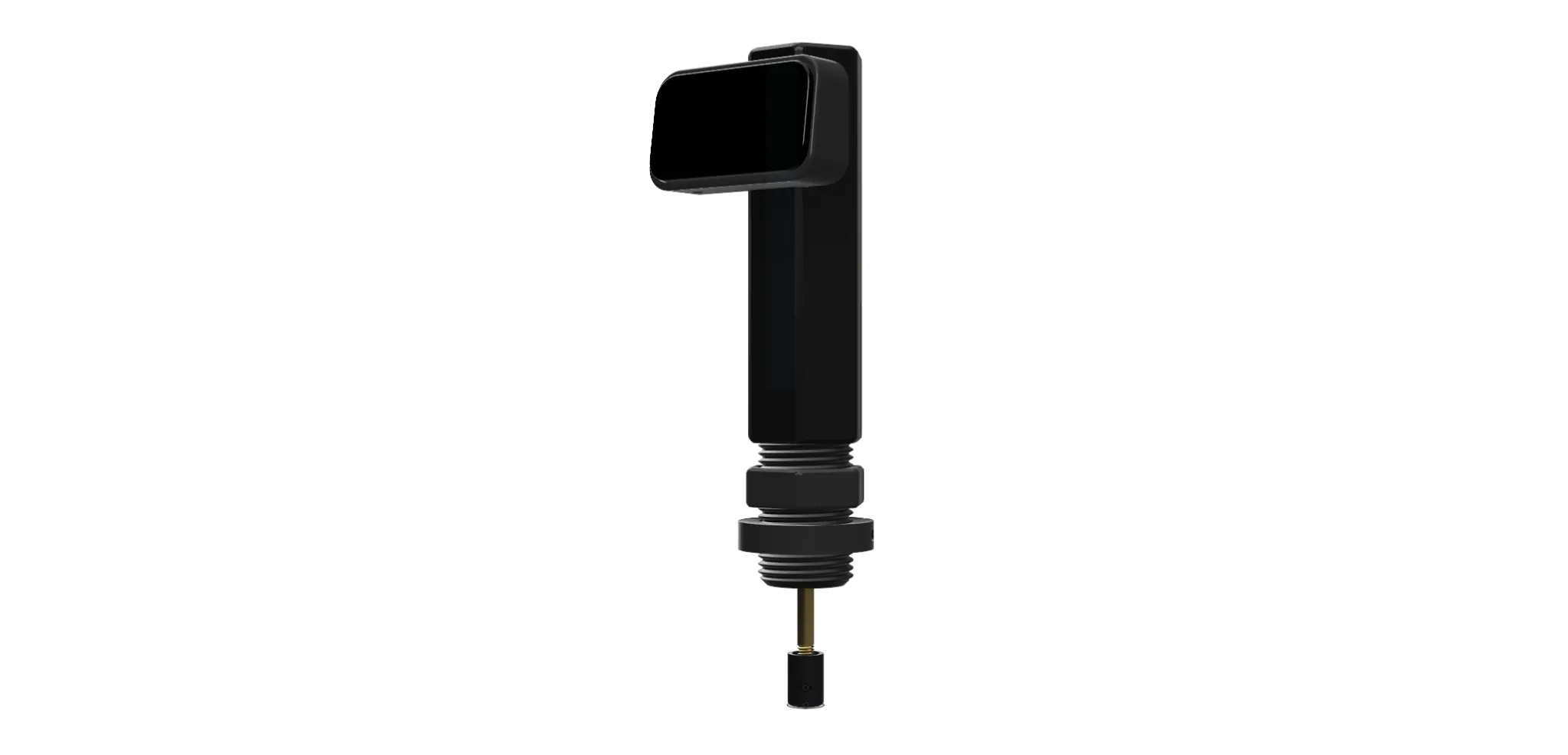

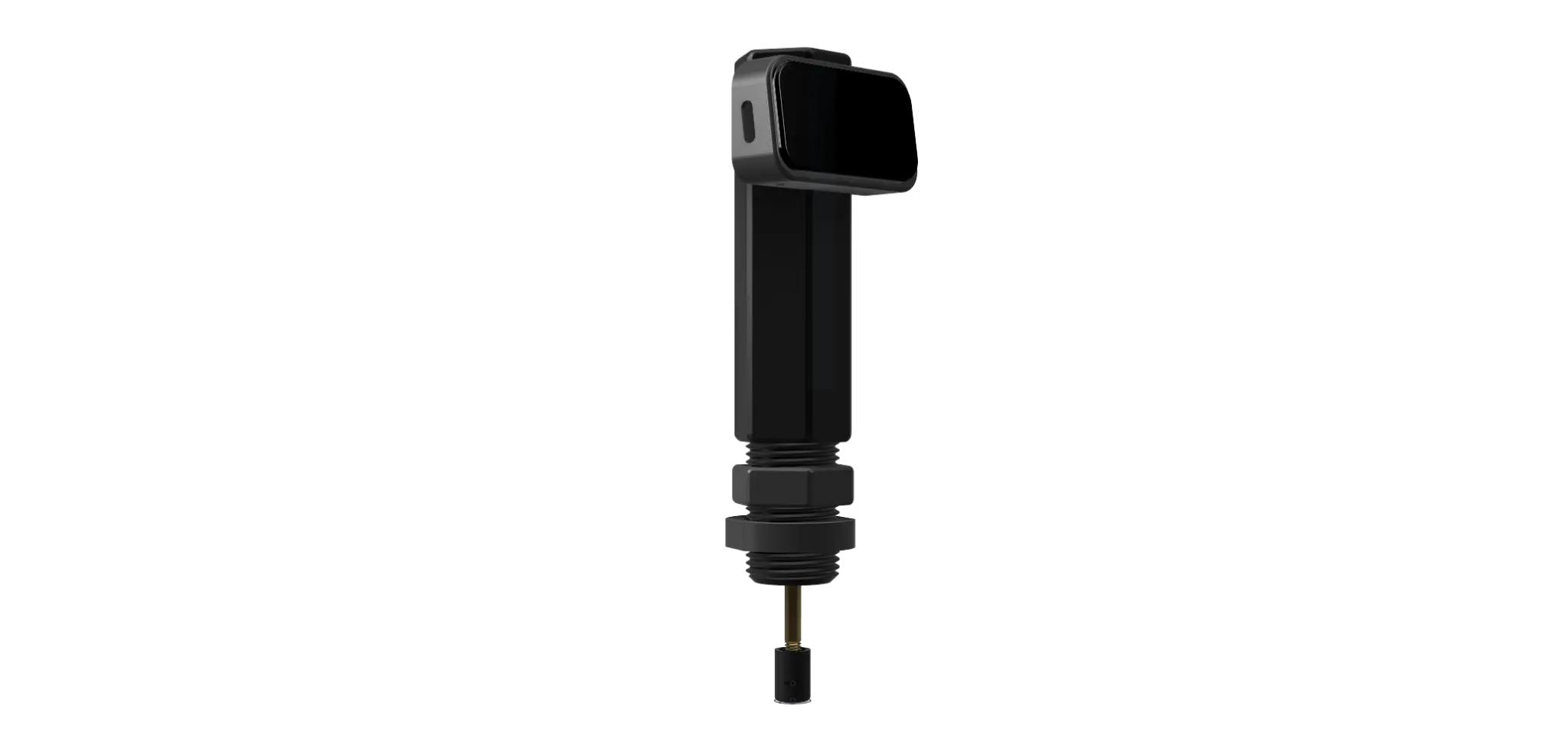

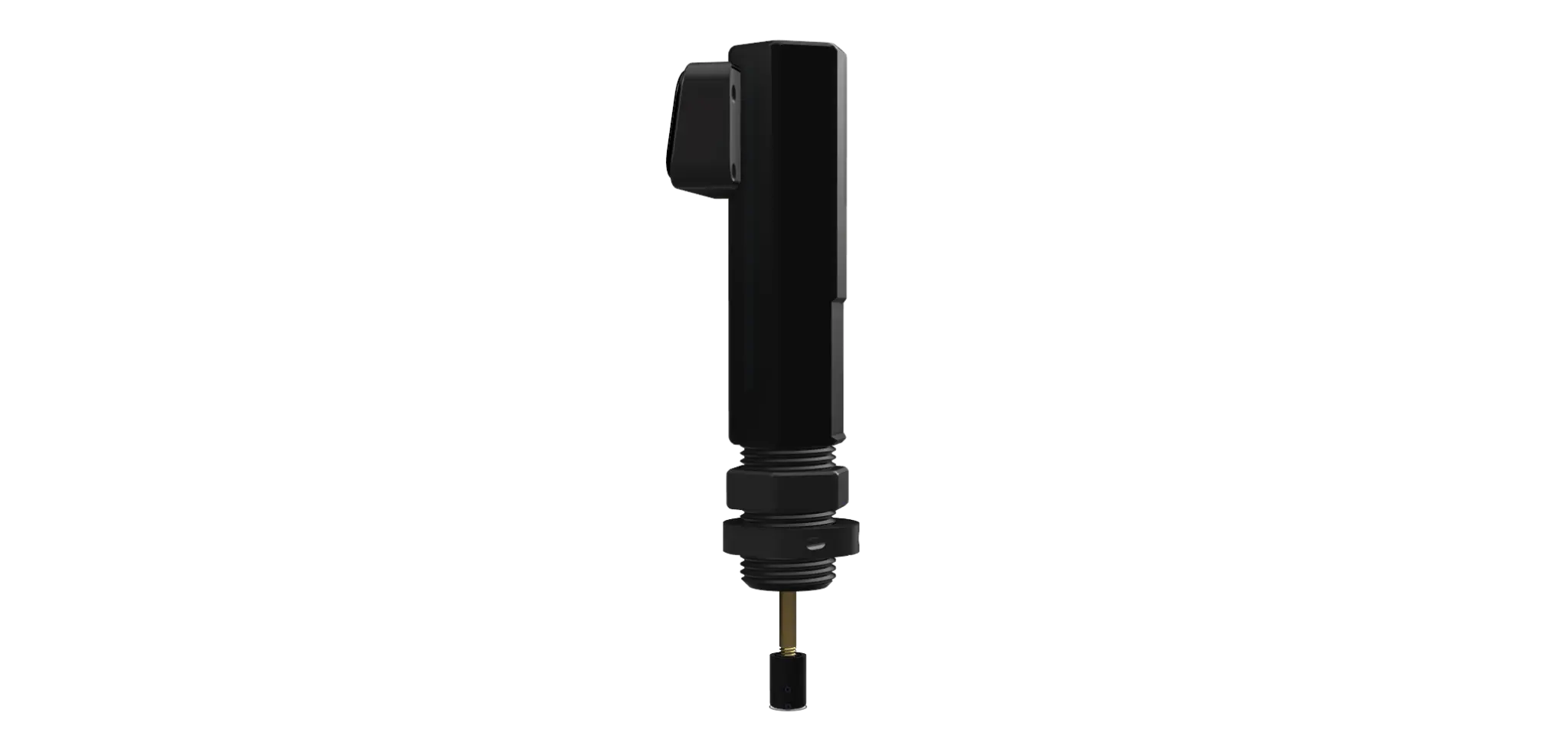

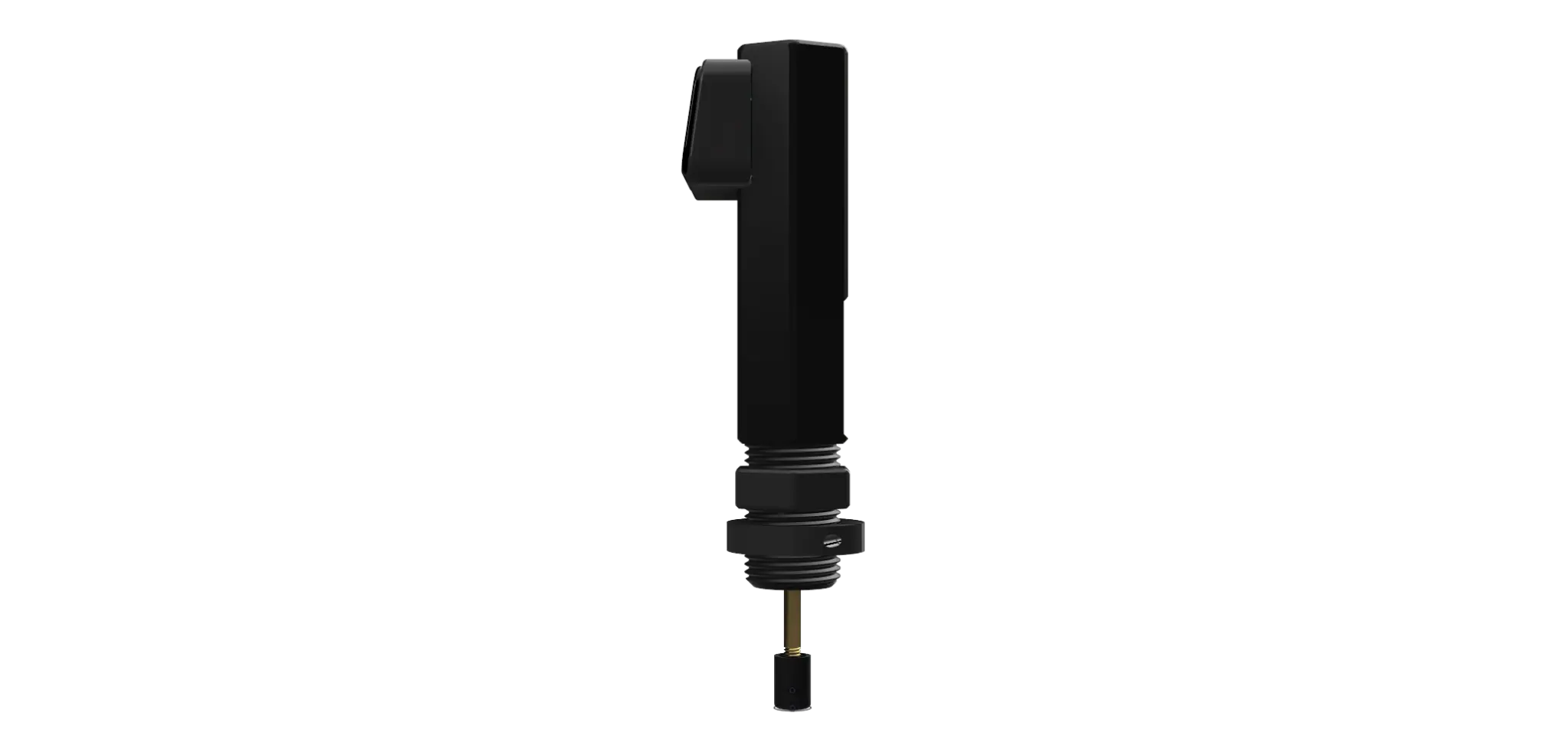

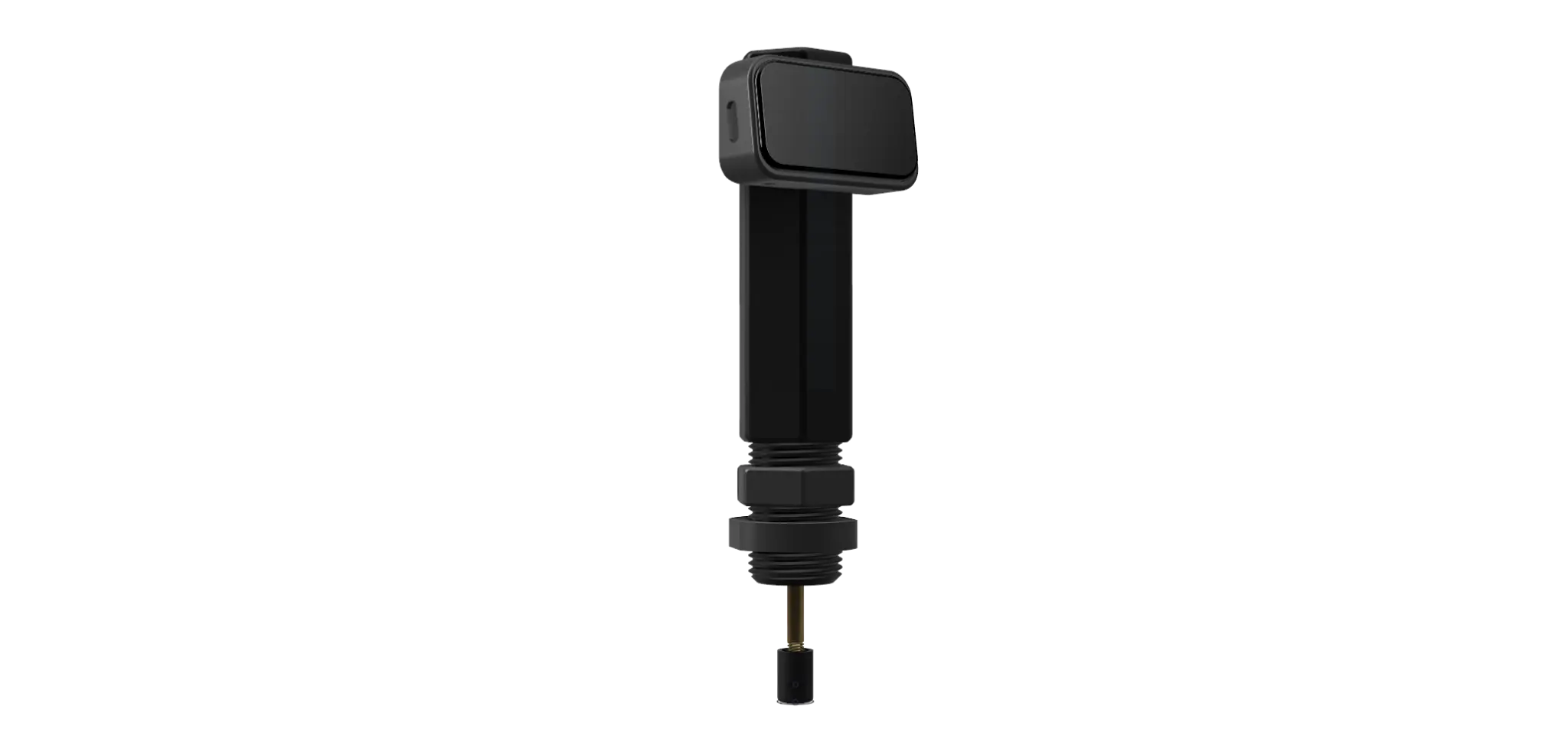

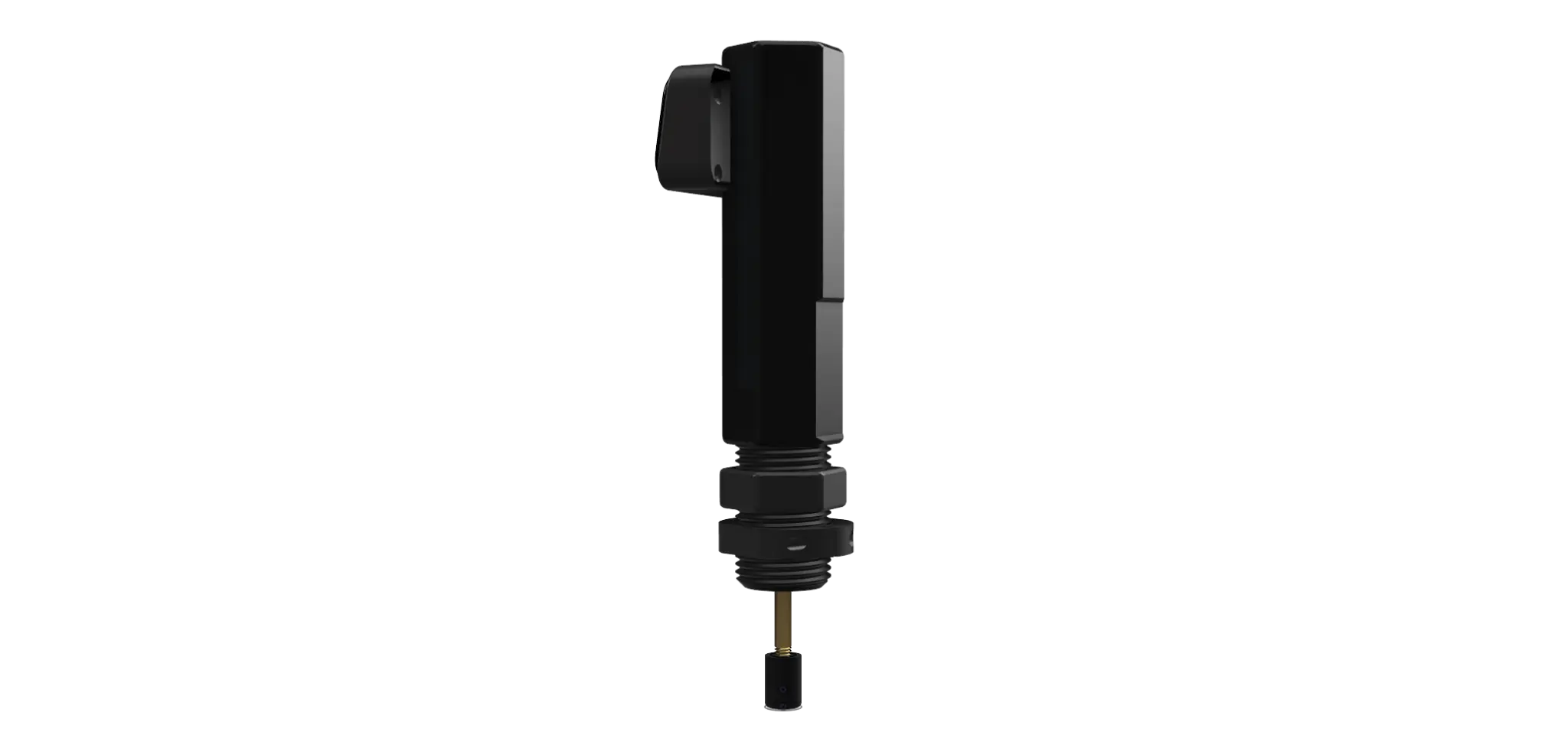

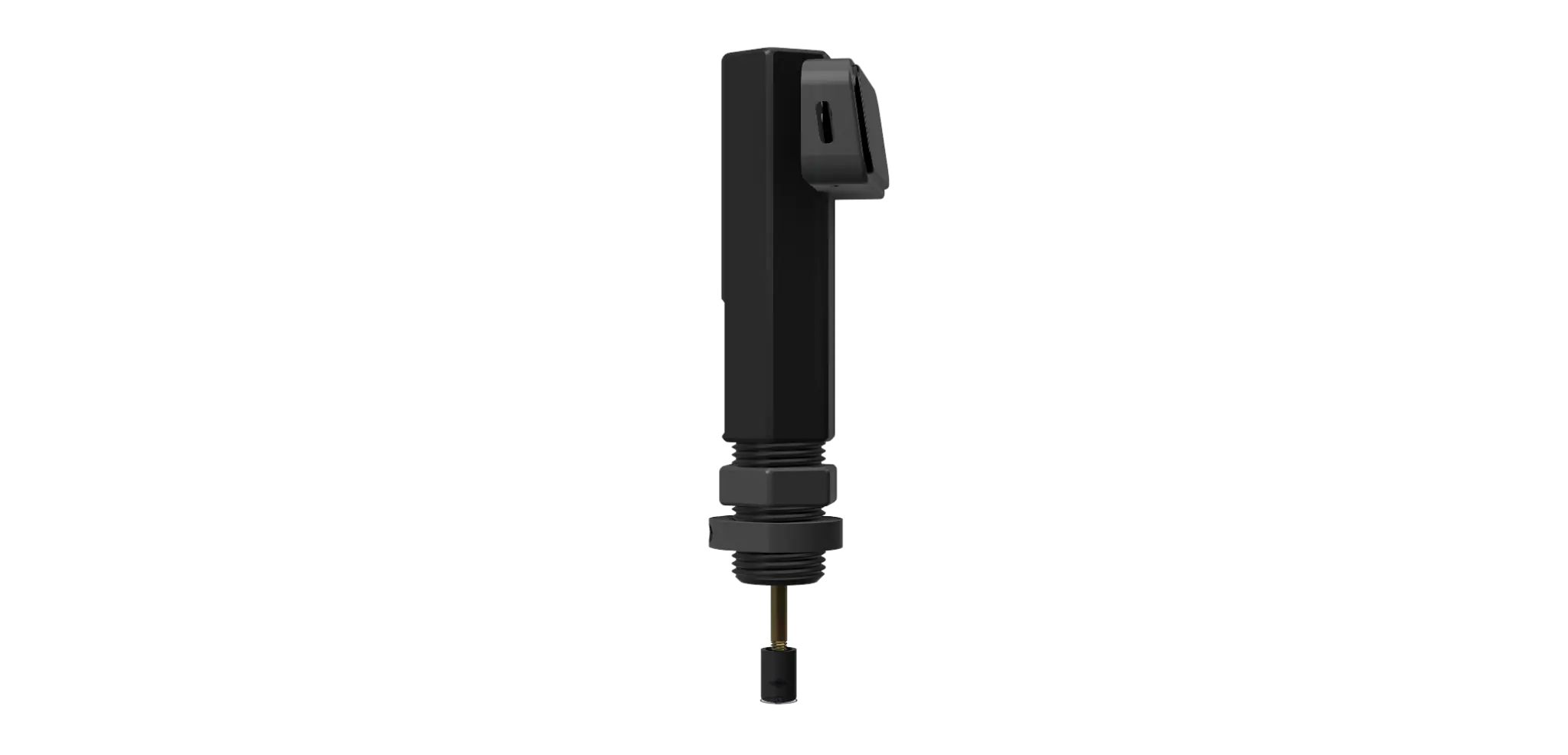

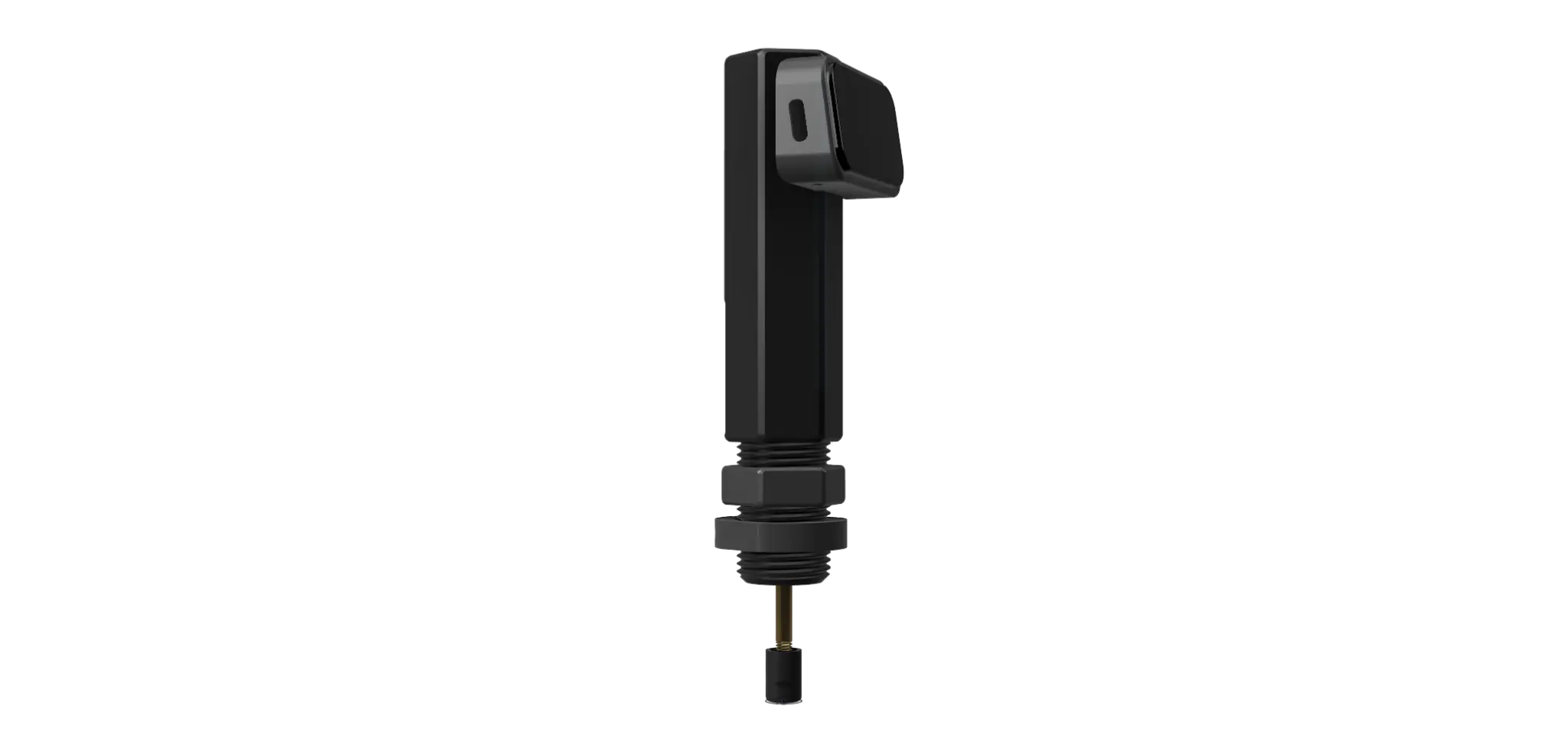

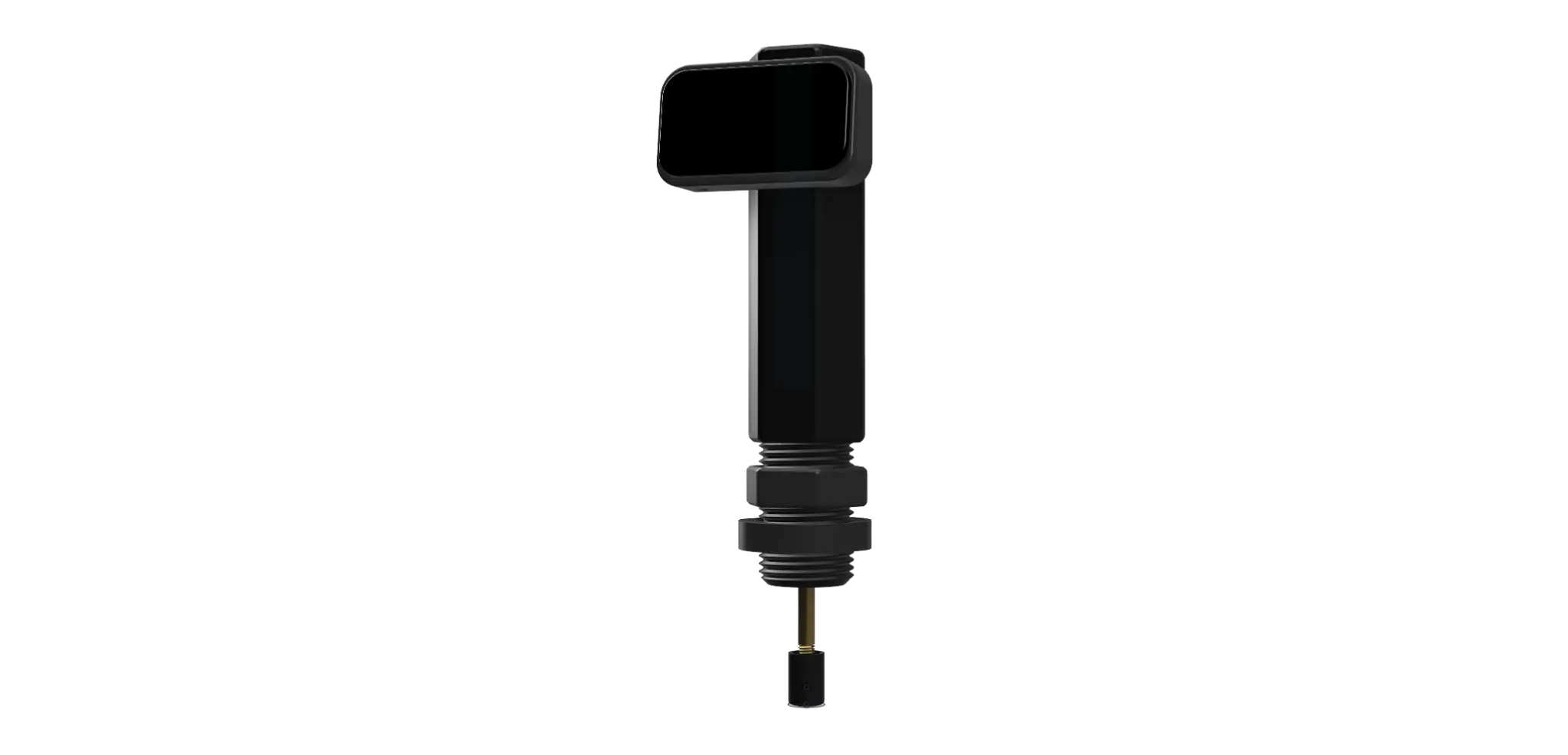

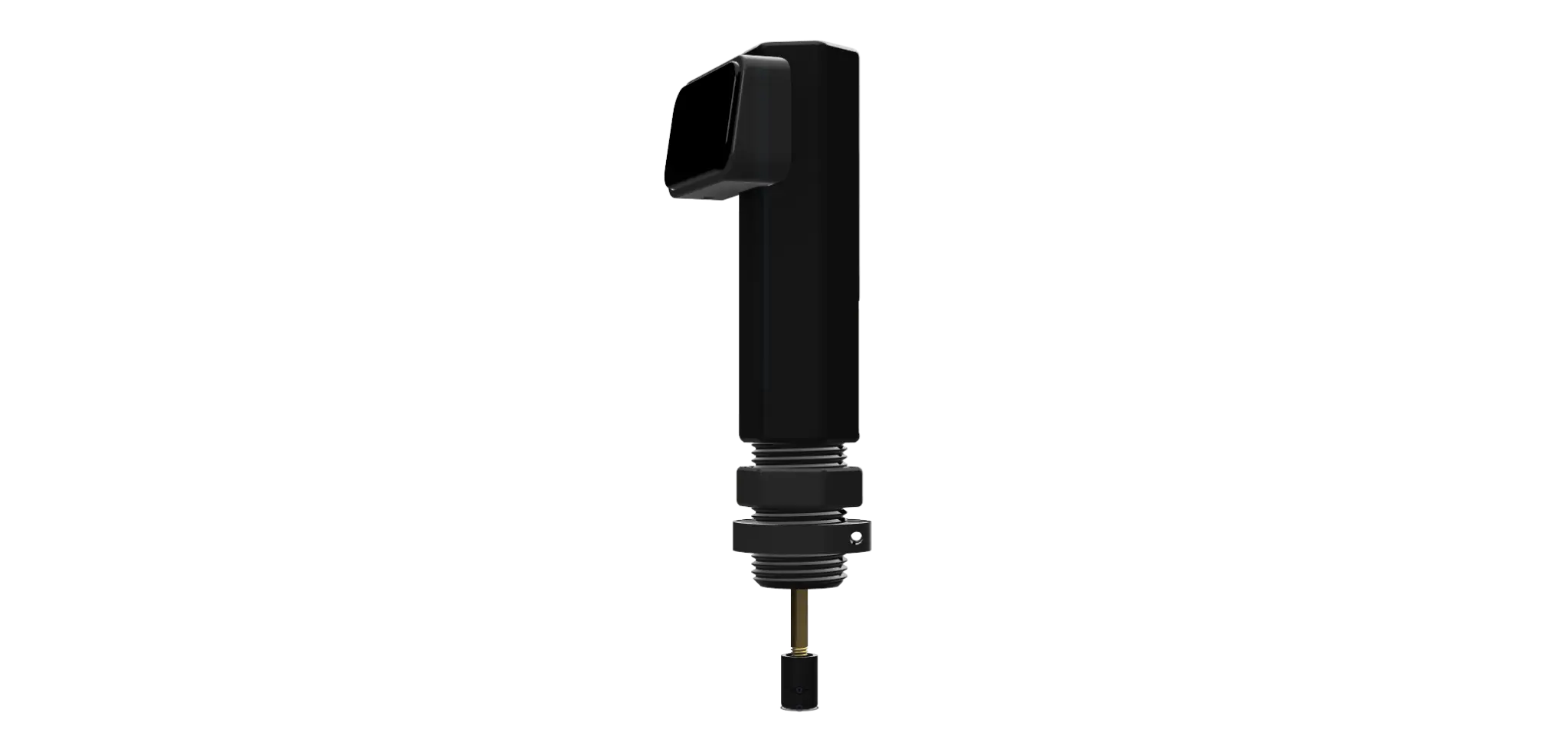

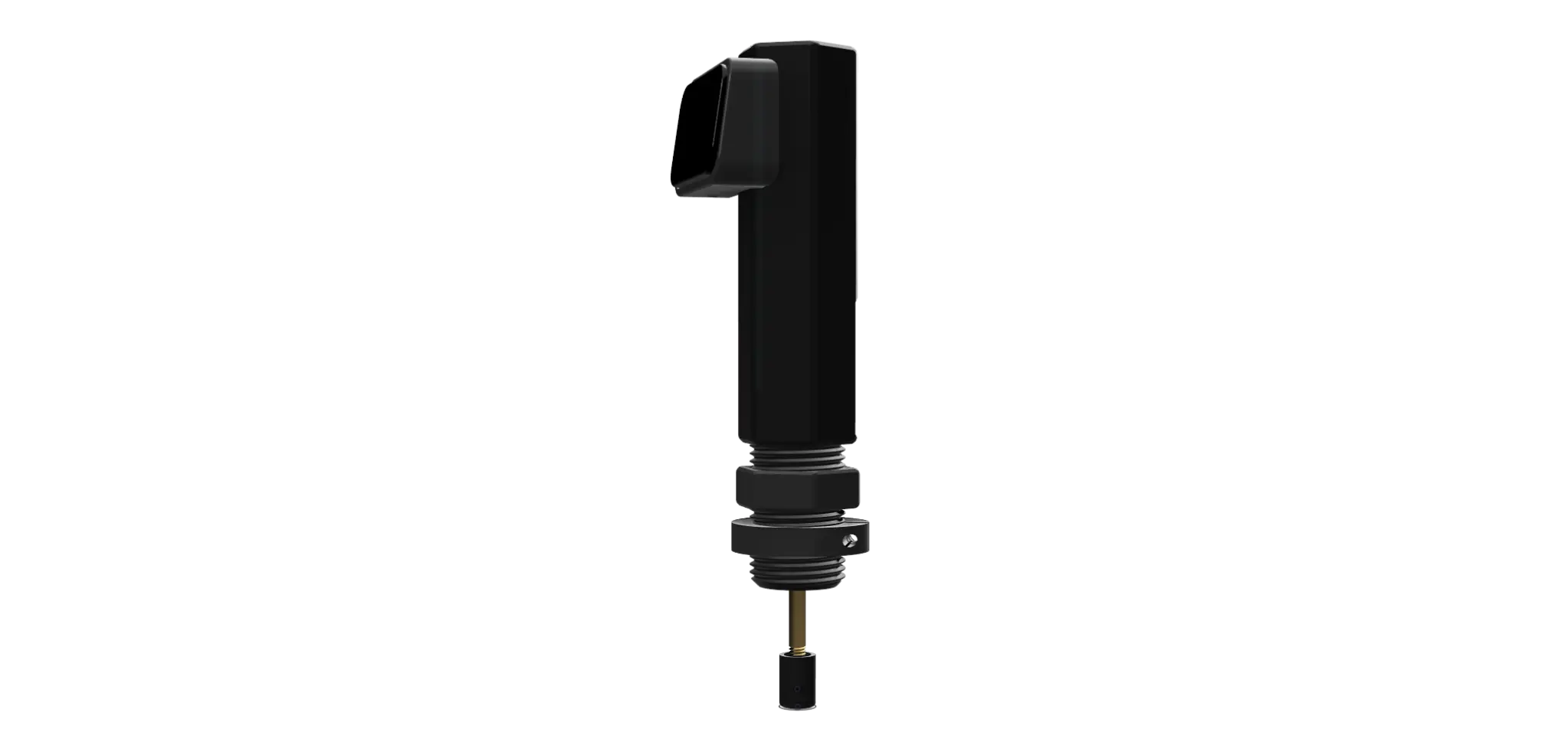

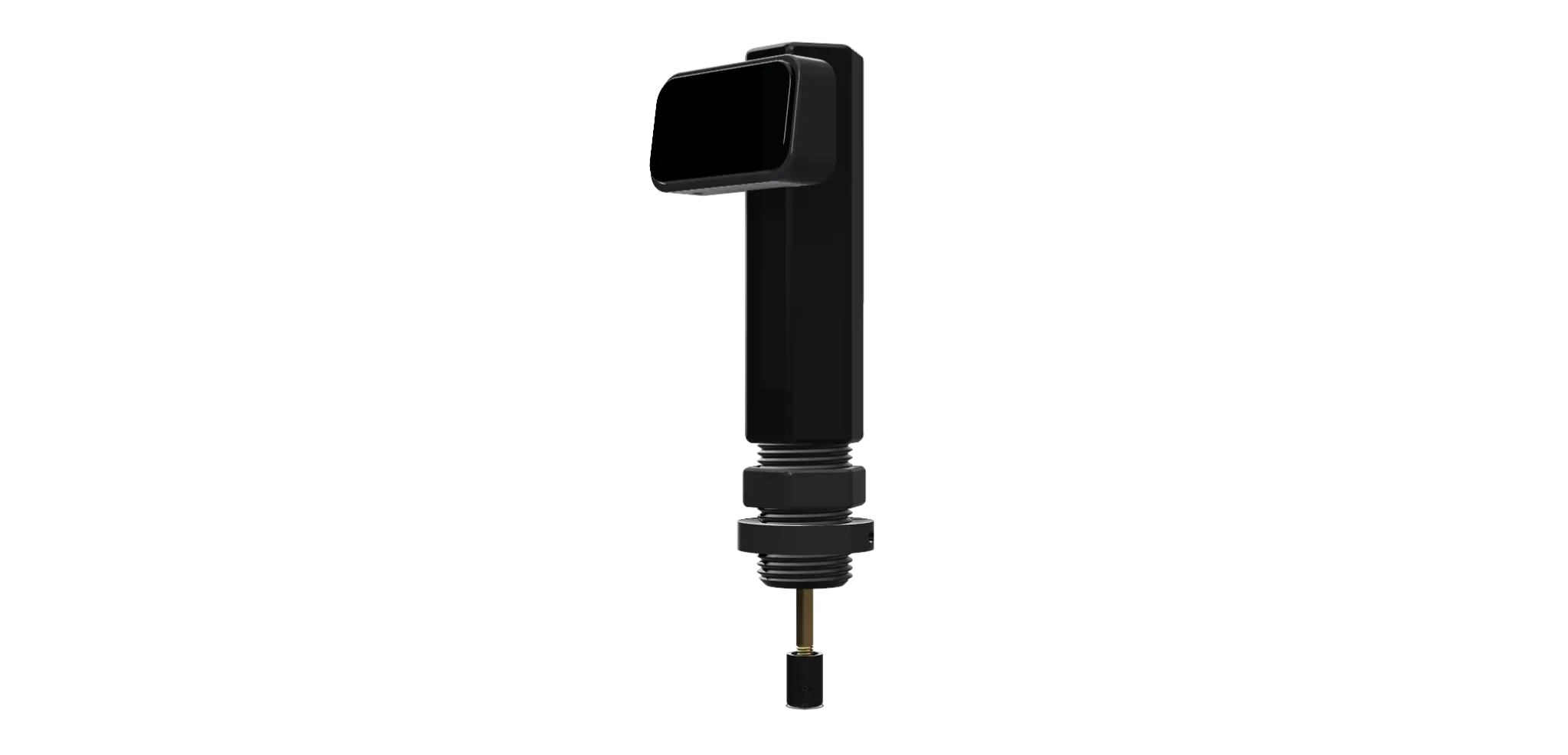

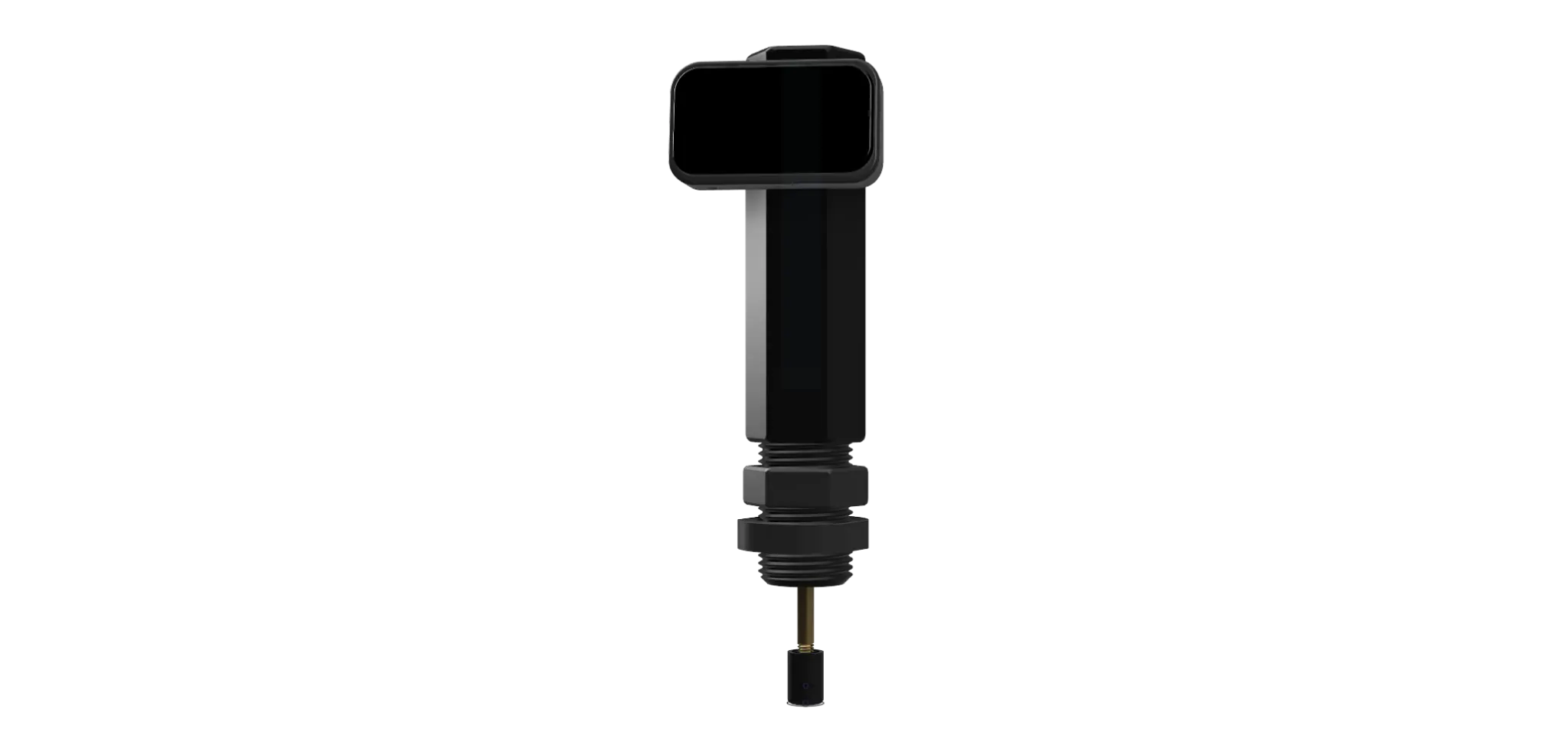

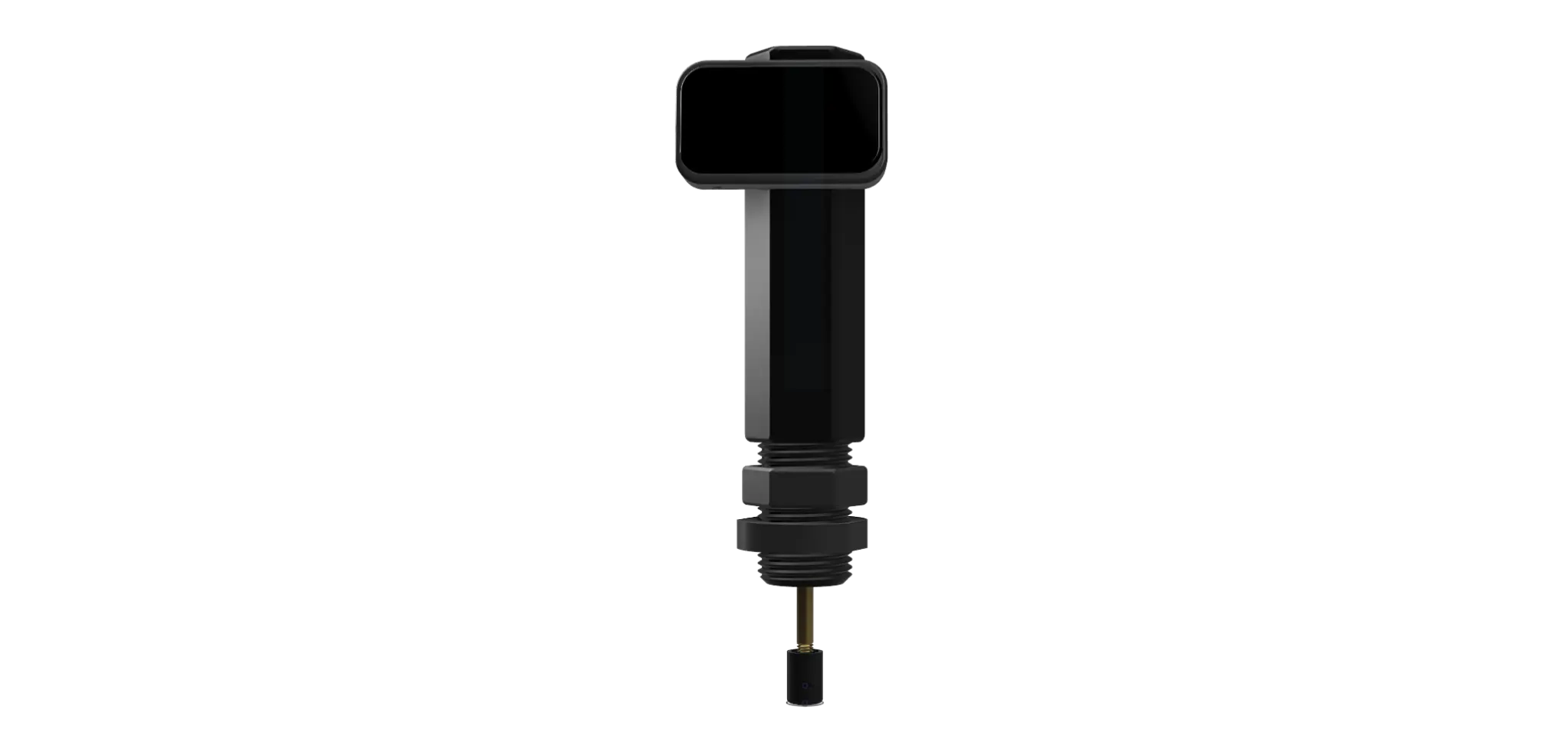

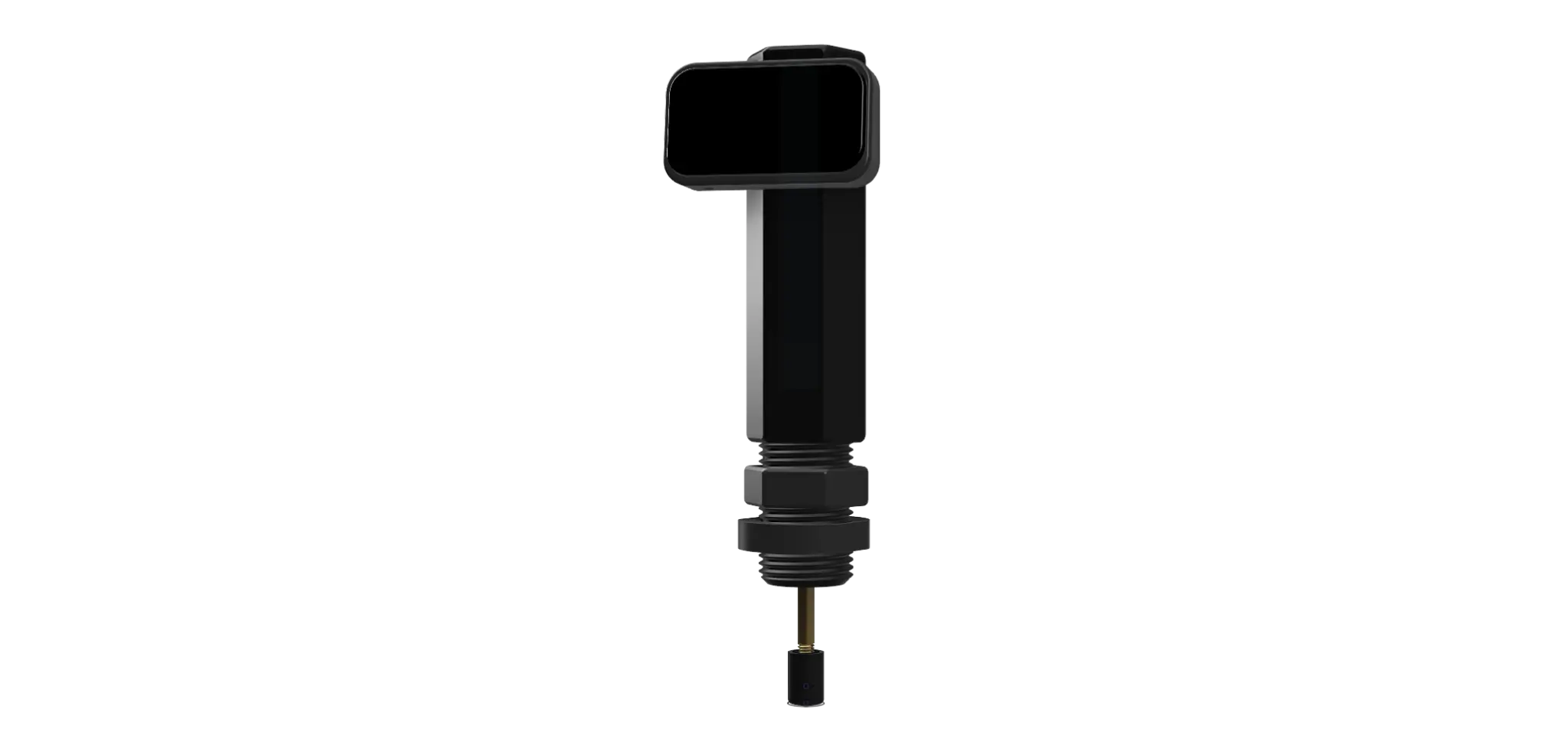

360° VIEW
PS001
↔ DRAG TO ROTATE
VIDEO_DEMO
POWDERSENSE IN ACTION
* Video coming soon. Contact us for a live demonstration.
SYSTEM_CAPABILITIES
WIFI CONNECTED
Real-time monitoring and configuration via embedded web console.
CONFIGURABLE
Customizable thresholds and automatic stability detection.
OPEN SOURCE
Full documentation, 3D files, and firmware available on GitHub.
COMPARISON_TABLE
| FEATURE | POWDERSENSE PS001 | MANUAL SCALE | BEAM SCALE |
|---|---|---|---|
| Precision | 0.001 grain | 0.1 grain | 0.1 grain |
| Digital Display | Yes | Yes | No |
| WiFi Connectivity | Yes | No | No |
| Auto-Stability Detection | Yes | No | No |
| Web Configuration | Yes | No | No |
| Open Source | Yes | No | No |
| OTA Firmware Updates | Yes | No | No |
| Real-time Monitoring | Yes | No | No |
| Customizable Thresholds | Yes | Limited | No |
TECHNICAL_SPECS
- Microcontroller
- ESP32-C6
- Display
- 1.47 inch TFT LCD (172x320)
- ADC Resolution
- 16-bit (ADS1115)
- Measurement Range
- 0-60mm
- Connectivity
- WiFi 802.11 b/g/n (2.4GHz)
- Power
- 5V USB-C
- License
- CERN-OHL-W / MIT
FROM IDEA TO DEVICE
PowderSense was developed entirely in-house, from schematic to enclosure and firmware: ESP32-C6, custom PCB, 3D-printed enclosure, colour display and a built-in web console. The product is no longer for sale, but it shows exactly how a measurement idea becomes a working device with us.
